DIVI cube®

Partition walls and divider system

One profile for all applications

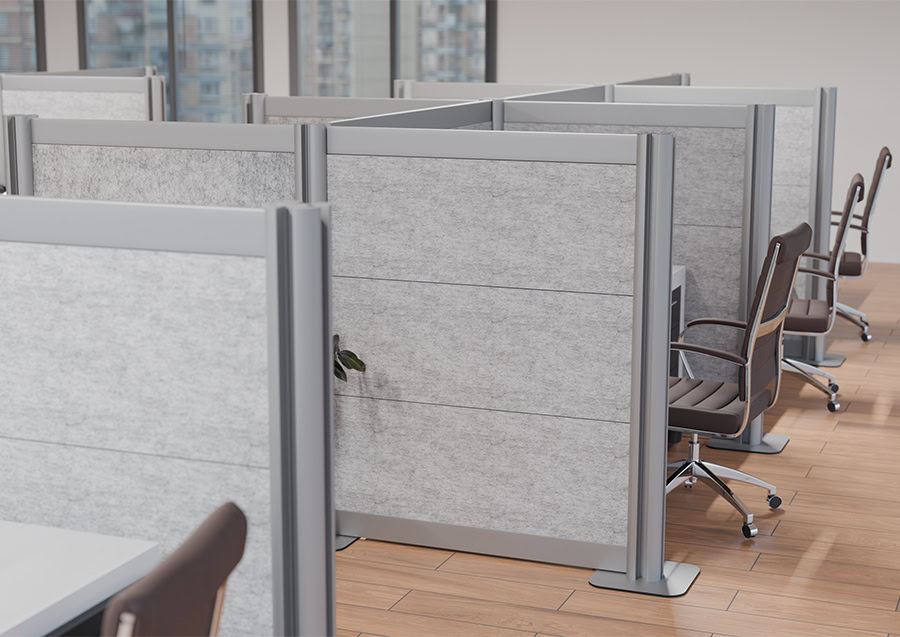

DIVI cube® is real all-rounder when it comes to partition walls and divider systems.
The idea is that designer universal profiles can be equipped with sound-insulating filling plates in all four directions with little effort. Variable in terms of its dimensions, easy to set up, dismantle and convert, the DIVI cube® supports a variety of uses.

ropimex Sound insulation DIVI cube partition walls and divider system
ropimex Sound insulation DIVI cube partition walls and divider system Silent Box
ropimex Sound insulation DIVI cube partition walls and divider system
ropimex Sound insulation DIVI cube partition walls and divider system

Depending on your requirements, you can fit your DIVI cube® with 25 mm thick infill panels made of 100 % PET fibres with an all-round ABS edge to form an L-, U-, Z- or cross-shaped installation as a

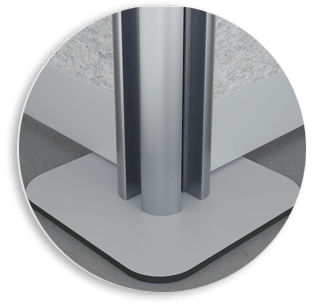

ropimex Sound insulation DIVI cube partition walls and divider system - Base plate

Base plates made from 8-mm-thick sheet steel secure a stable standing

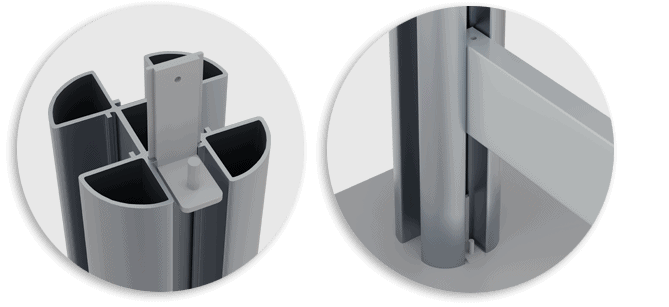

ropimex Sound insulation DIVI cube partition walls and divider system - Retaining clamps

Retaining clamps with a spike hold the filling plates securely in place

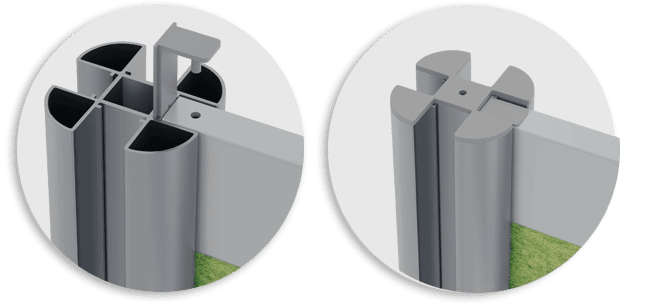

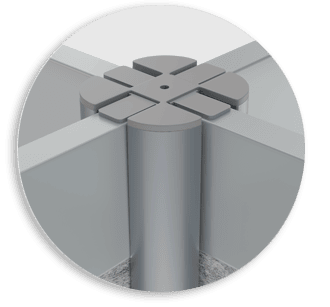

ropimex Sound insulation DIVI cube partition walls and divider system - Cover cap

Cover cap – functional finish

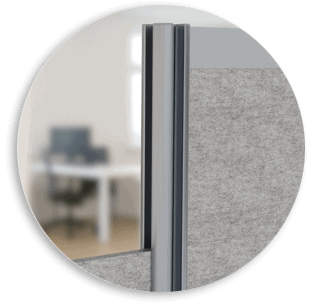

ropimex Sound insulation DIVI cube partition walls and divider system - detail

Can be equipped
as required

ropimex Sound insulation DIVI cube partition walls and divider system - with circumferential ABS edge in felt grey

with circumferential ABS edge in felt grey

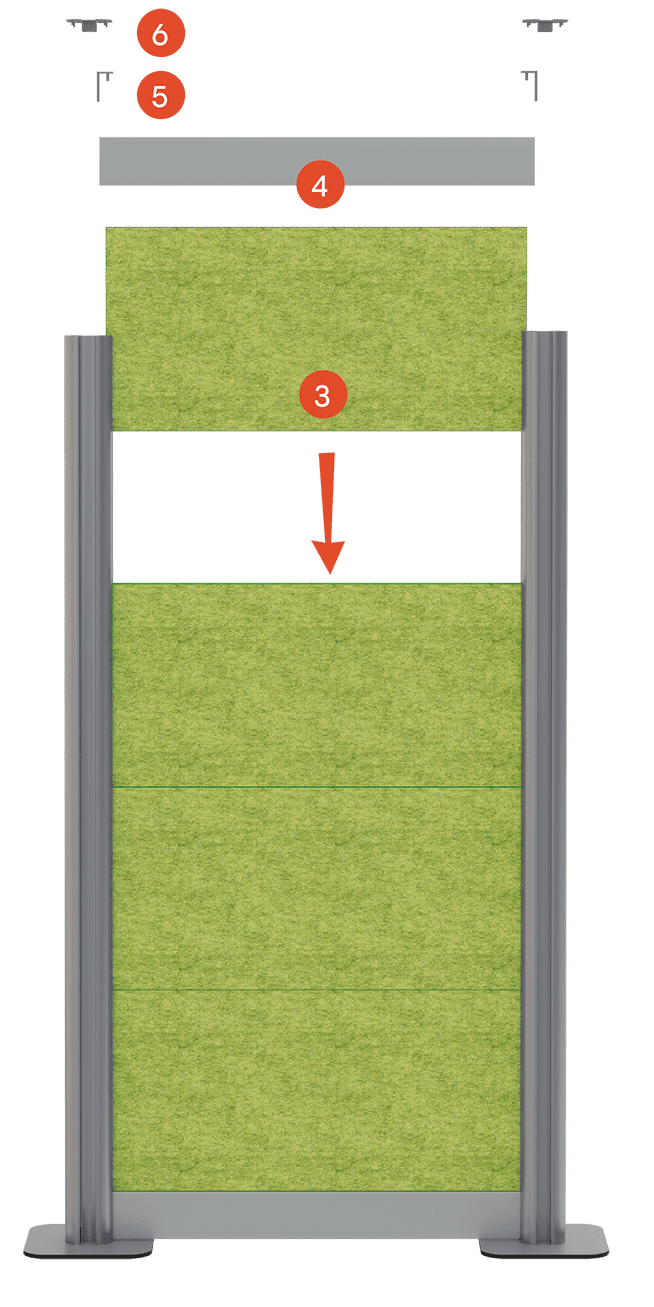

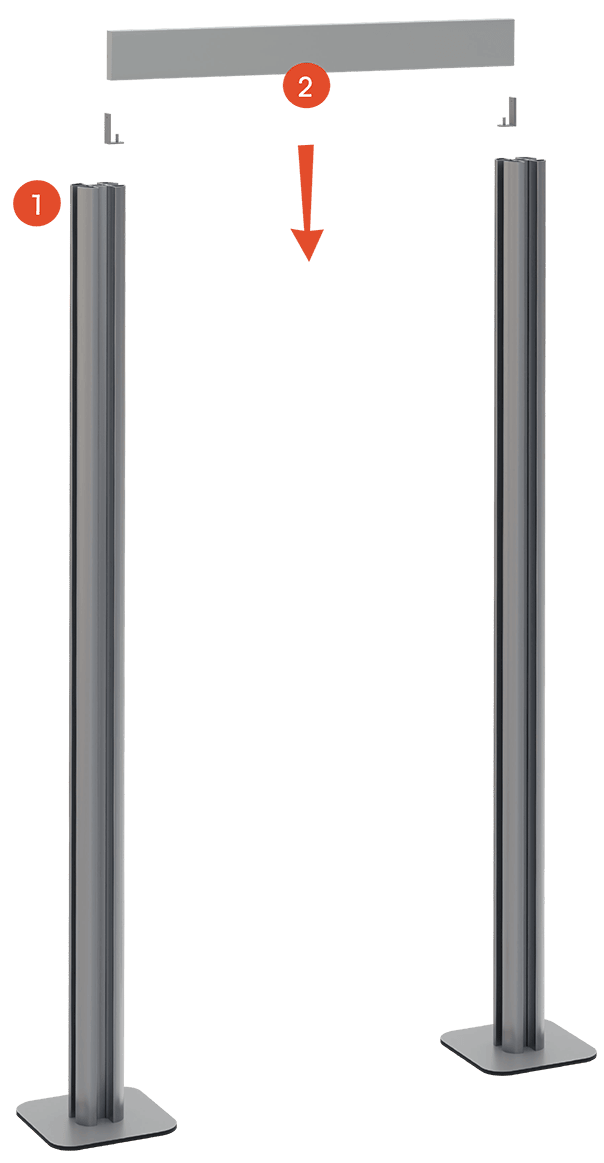

ropimex Sound insulation DIVI cube partition walls and divider system - construction scheme

Setup in just a few steps

ropimex Sound insulation DIVI cube partition walls and divider system - we recommend always setting up the walls in an L, U, Z or cross shape

For safety reasons, we recommend always setting up the walls in an L, U, Z or cross shape.

ropimex Sound insulation DIVI cube partition walls and divider system - Filling plates in three widths and two heights

Filling plates in three widths and two heights

ropimex Sound insulation DIVI cube partition walls and divider system - Column in three heights.

Column in three heights.

Aluminium pillar 90 x 90 mm, powder-coated grey

ropimex Sound insulation DIVI cube partition walls and divider system - Base plate

Base plate made from 8-mm-thick sheet steel in three versions

Colours

DIVI cube® partition walls are made of 100% PET fibers, flame retardant according to DIN EN 13501-1, B-s1, d0. Pressed to 25-mm-thick inherently stiff plates with an all-round ABS edge in grey felt look for clean edges.
Available in 6 colors
